A wide range of services related to catalyst exchange

At BUCHEN Industrial Services, we provide you with a versatile service offering for catalyst handling and treatment. In doing so, we use newly developed processes in addition to existing technologies. Thanks to this innovation, working on catalysts becomes significantly safer and more efficient.

Totally up to speed with a whole range of production facilities

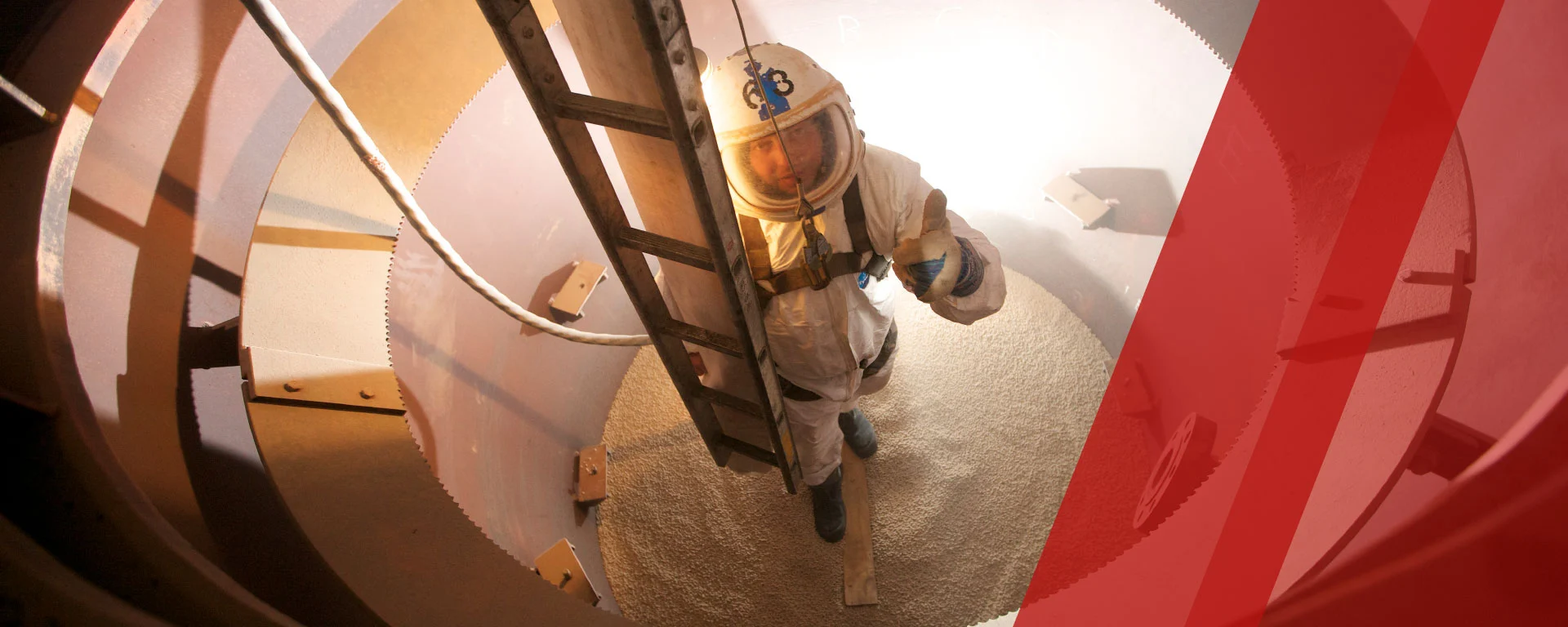

BUCHEN Industrial Services offers a full range of services for catalyst replacements. In this respect, we handle replacements in a normal and in a nitrogen atmosphere. During this process, we empty the various types of storage vessels and reactors, then thoroughly clean and reload them. This includes installing all the necessary equipment needed to do a good job. Once the job is finished, all this will be carefully removed.

But we do more than just empty, clean and reload the various types of storage vessels. We also separate the fine material and inert ceramic balls from the catalyst. Moreover, we also provide further handling and treatment of all materials and parts that need replacing. Examples are the catalyst, molecular sieves, activated carbon and pearlite. In addition to that, BUCHEN Industrial Services takes full charge of all maintenance work associated with catalyst handling and treatment.

Conventional services for your installation

Loading and unloading

Emptying reactors

  • Emptying reactors by allowing them to drain naturally - gravitational dumping
  • Emptying reactors using vacuum systems. Both with and without the use of nitrogen.
  • Thanks to our material-friendly soft-flow equipment, reactors undergo low friction and are better protected from breakage.

Loading reactors

  • Dense loading such as UOP, DENSICAT®, CALYDENS®, Linde and Catapac™.
  • Sock Loading.
  • Orifice loading through multiple channels of tube reactors.
  • Filler loading of tube reactors.

Screening & mechanical work

Screening the catalyst

  • Removing the dust from the catalyst.
  • Separating the fine material and inert ceramic balls from the catalyst.
  • Dividing the balls into different sizes.
  • Division of all materials of the same size according to their weight - density fractionation.

Mechanical work on the catalyst

  • Installation, removal and repair of reactor components. This in both a normal and nitrogen atmosphere.
  • Replacement of centre pipes, shells, quench pipes or cases, distribution plates, support plates, screen baskets, cover plates, exhaust collectors, condensers, catalyst transfer pipes and split rings, among others.

Our areas of expertise for catalyst replacement

Refining

  • Hydrocrackers
  • FCC
  • Reforming/CCR
  • Desulphurisation installations
  • Hydrotreating/hydrofining)
  • Filters (activated carbon, absorbers)
  • Isomerisation/Penex™
  • CHD
  • Prime-G
  • Unifining
  • Parex™/Molex™

Chemicals & petrochemicals

  • Olefin
  • Aromatic compounds
  • Converters for ammonia synthesis
  • Tube reactors (EO, PO, GTL, acrylic acid, methacrylic acid, Phthalic acid, etc.)
  • Styrene (polymerisation)

Other areas

  • Steam reformers/primary reformers
  • Coldboxes
  • Sulphuric acid converters
  • PSA
  • LT/HT shift reactors
  • Flue gas desulphurisation (DeNOx, SNOx, SO2 converters)
  • CD-tech (catalyst modules)

Applications

Hydrocrackers

Our services

  • Emptying and loading according to standard processes.
  • Measuring differential pressure.
  • Video inspection and documentation work.
  • Cleaning duties.

CCR (continuous catalytic reformers)

Our services

  • Emptying, straining and loading.
  • Mechanical work such as replacing scales, centre pipes, etc.
  • Video inspection and documentation work.
  • Preparation for recycling the precious metal from the catalyst. This includes weighing and listing.
  • Cleaning facilities.

Isomerisation/Penex

Our services

  • Emptying, straining and loading under full nitrogen conditions.
  • Use of special loading equipment to fill the vessels and obtain a dense loading machine.
  • Video inspection and documentation work.

Parex/Molex

Our services

  • Emptying and loading.
  • Mechanical work such as plasma cutting, welding, etc.
  • Checking for leaks.
  • Video inspection and documentation work.

Converters for ammonia synthesis

Our services

  • Emptying and loading.
  • Mechanical work (welding, cutting, etc.).
  • Video inspection and documentation.

Tubular reactors

Our services

  • Emptying
  • Cleaning and dust removal of tubes.
  • Loading
  • Measuring the differential pressure.
  • Installing temperature sensors.
  • Video inspection and documentation work.

Steam Crackers

Our services

  • Emptying and loading according to standard processes.
  • Measuring differential pressure.
  • Video inspection and documentation work.
  • Cleaning duties.
